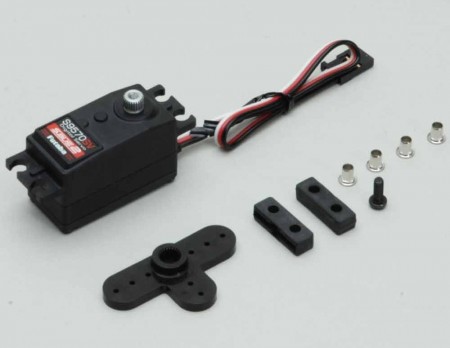

Futaba Servo S9570SV Low Profile HV S-Bus2 (8Kg/0.08s/7.4V)


Tax included
In stock

The S9570SV low profile servo has been primarily developed for EP car use, but is also suitable for many GP cars and aircraft, given its speed and power.

  • High voltage (7.4V)
  • Dual ball bearings
  • Coreless motor
  • Metal gear
  • Programmable

Technical Specifications:

Recommended Application: Cars, helicopters, airplanes and boats

Operating Voltage: 4.8V - 7.4V

Operating Speed @ 7.4V: 0.08s / 60º

Operating Torque @ 7.4V: 8kg

Operating Speed @ 6.6V: 0.09s / 60º

Operating Torque @ 6.6V: 7.2kg

Operating Speed @ 6V: 0.10s / 60º

Operating Torque @ 6V: 6.6kg

Operating Speed @ 4.8V: 0.11s / 60º

Operating Torque @ 4.8V: 5.8kg

Motor Type: Coreless

Output Shaft: 25 Teeth

Gears: Metal

Bearings: Double

Dimensions: 41x20x25mm

Weight: 43g
