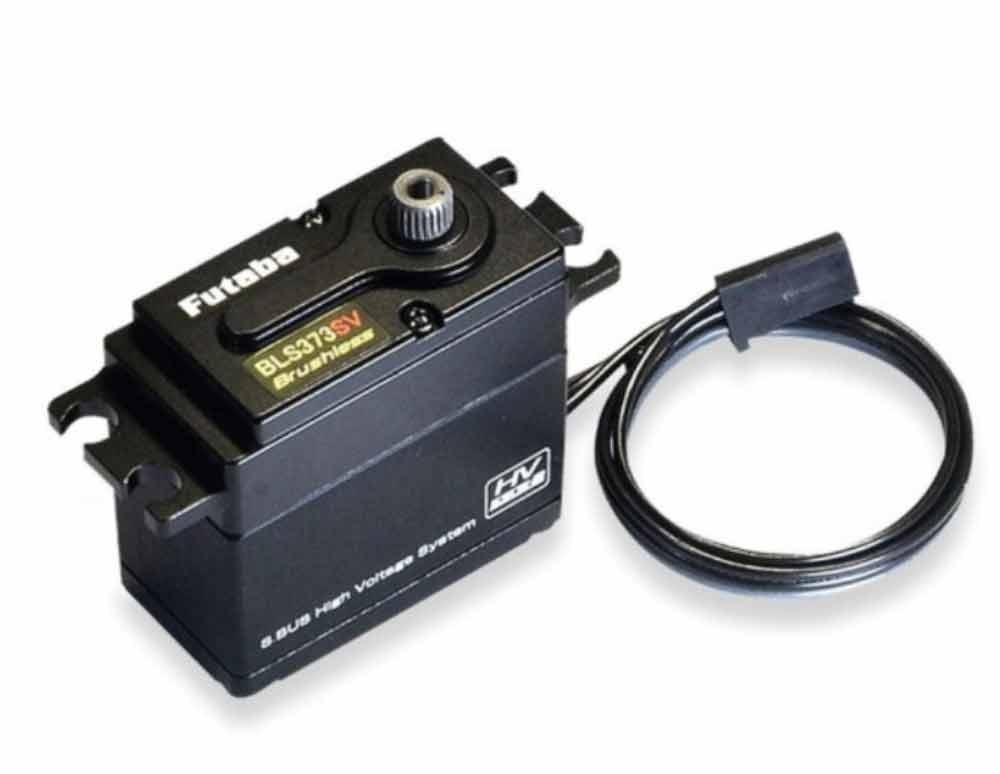

Futaba Servo BLS373SV Brushless HV S-Bus2 (37Kg/0.11s/7.4V)

The BLS373SV is an extremely high specification HV servo from Futaba designed with 1/5 car racing in mind. It supports the ultra-fast SR (Super Response) mode used in the T7PX transmitter for the best reaction and 'feel' available. It is programmable (using the optional CIU-2 / CIU-3 USB adapter) and is compatible with both S.Bus and S.Bus2 systems. The final gear and output horn splines are machined from strong stainless steel for extreme durability in demanding situations. To cope with the extreme torque on offer the case was re-designed to include extra bracing for the output shaft. The electric motor is brushless to produce both speed and torque while simultaneously increasing the reliability and life. The BLS373SV was designed for high-voltage power and can be used with a 2S LiPo battery directly to extract the highest performance levels.

• High voltage (7.4V)
• Dual ball bearings
• Brushless motor
• Metal gear
• Programmable
• Full alloy case

Technical Specifications:

Recommended Application: 1:5 scale models

Operating Voltage: 6V - 7.4V

Operating Speed @ 7.4V: 0.11s / 60º

Operating Torque @ 7.4V: 37kg

Operating Speed @ 6V: 0.14s / 60º

Operating Torque @ 6V: 31kg

Motor Type: Brushless

Output Shaft: 25 Teeth

Gears: Metal

Bearings: Double

Dimensions: 40.5x21x38.4mm

Weight: 84g
