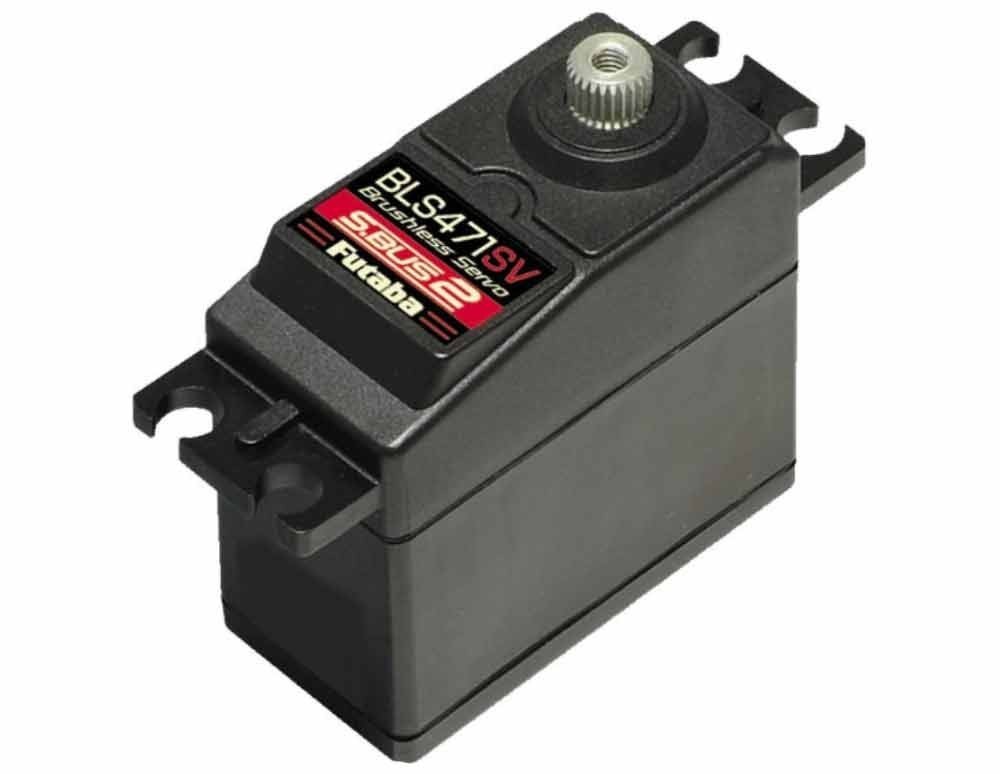

Futaba Servo BLS471SV Brushless HV S-Bus2 (13.8Kg/0.07s/7.4V)

The new 471SV servo has been designed to be ideal for a wide range of cars, being of standard size whilst having excellent torque and particularly speed figures. Featuring metal gears as might be expected, the 471SV also comes with all the benefits of SV servos, with high voltage operation, S-Bus functionality and programmability.
This servo is compatible with Futaba SR 'Super Response' systems.

• High voltage (7.4V)
• Dual ball bearings
• Brushless motor
• Metal gear
• Programmable
• S-Bus and S-Bus2 compatible

Technical Specifications:

Recommended Application: Cars and boats

Operating Voltage: 6V - 7.4V

Operating Speed @ 7.4V: 0.07s / 60º

Operating Torque @ 7.4V: 13.8kg

Operating Speed @ 6V: 0.09s / 60º

Operating Torque @ 6V: 11.9kg

Motor Type: Brushless

Output Shaft: 25 Teeth

Gears: Metal

Bearings: Double

Dimensions: 40.5x20x36.8mm

Weight: 57g
