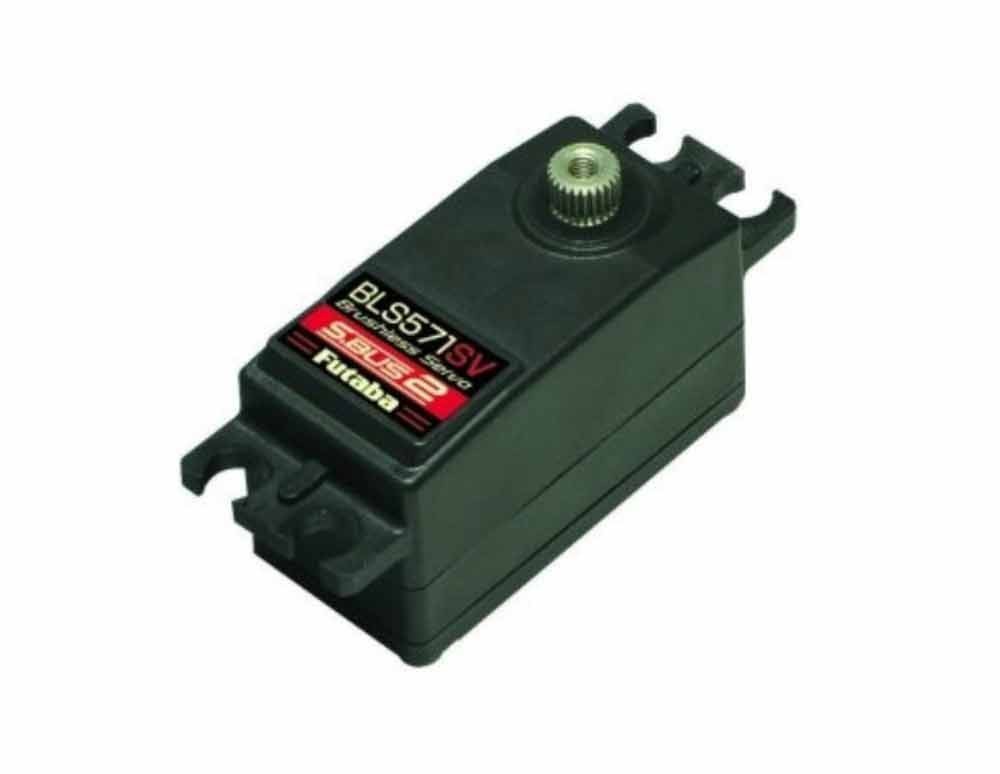

Futaba Servo BLS571SV Low Profile Brushless HV S-Bus2 (11Kg/0.8s)


Tax included
In stock

This new low profile servo has been optimised for EP car use, but is also suitable for other applications where this non-standard size of servo is required. Having notably good speed and torque figures, the 571SV also includes metal gears to absorb the shocks servos suffer when racing competitively.
This servo is compatible with Futaba SR 'Super Response' systems.

  • High voltage (7.4V)
  • Dual ball bearings
  • Brushless motor
  • Metal gear
  • Programmable
  • S-Bus and S-Bus2 compatible

Technical Specifications:

Recommended Application: Cars and boats

Operating Voltage: 6V - 7.4V

Operating Speed @ 7.4V: 0.08s / 60º

Operating Torque @ 7.4V: 11kg

Operating Speed @ 6V: 0.10s / 60º

Operating Torque @ 6V: 9.4kg

Motor Type: Brushless

Output Shaft: 25 Teeth

Gears: Metal

Bearings: Double

Dimensions: 40.5x20x25.4mm

Weight: 41g
