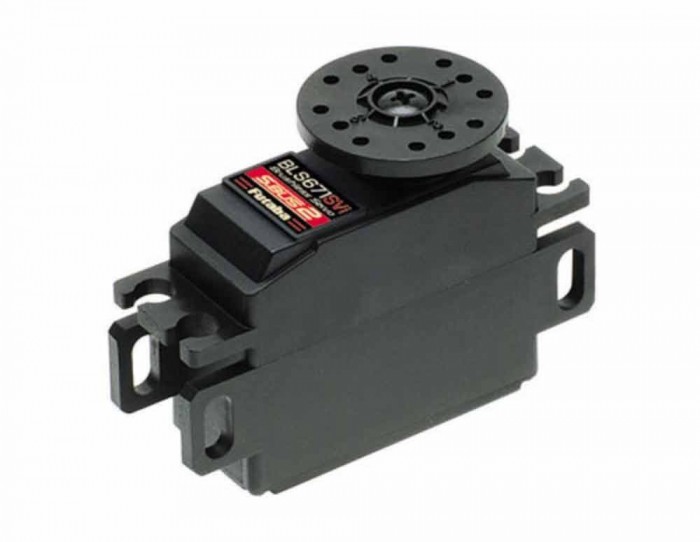

Futaba Servo BLS671SVI Brushless HV S-Bus2 (8.3Kg/0.10s)

  • Online only
Futaba
P-SBL671SVI

Available

€175.00
Tax included
In stock
Delivery within 5 days

Developed to provide the ultimate steering servo for 1/12 cars and similar applications that require a compact, powerful and fast responding servo, the BLS671SVI can be used with voltages of up to 7.4v, where it provides no less than 8.3Kg.cm of torque and a 0.10 sec transit speed. It is also compatible with standard receivers as well as those outputting Futaba S-Bus or S-Bus2, and is of course fully programmable. Being brushless it offers up to five times the operational life of a non-brushless servo, ensuring long term reliability and performance.
This servo is designed to use futaba's innovative I-Connector leads.
This servo is compatible with Futaba SR 'Super Response' systems.

Characteristics:
  • High voltage (7.4V)
  • Dual ball bearings
  • Brushless motor
  • Metal gear
  • Programmable
  • S-Bus and S-Bus2 compatible

Technical Specifications:

Recommended Application: 1:12 scale cars

Operating Voltage: 6V - 7.4V

Operating Speed @ 7.4V: 0.10s / 60º

Operating Torque @ 7.4V: 8.3kg

Operating Speed @ 6.6V: 0.11s / 60º

Operating Torque @ 6.6V: 7.4kg

Operating Speed @ 6V: 0.12s / 60º

Operating Torque @ 6V: 6.7kg

Motor Type: Brushless

Output Shaft: 25 Teeth

Gears: Metal

Bearings: Double

Dimensions: 33x15x27.1mm

Weight: 28g
