Futaba T10J 10 Channel 2.4GHz T-FHSS (Mode 2) & R3008SB

The 10J has it all!

The new Futaba 10J radio utilises the very latest T-FHSS transmission technology to offer a full 10 channel system combined with sophisticated telemetry, the telemetry transmission of the signal strength, receiver battery voltage and external battery voltage being built-in to the matching R3008SB receiver, whilst further sensors from Futaba’s wide range can be added as required. As standard the telemetry data is displayed on the 10J’s large LCD screen, but audio output is also available via an earphone (not supplied). This extremely sophisticated system is supplied complete with transmitter battery and delta peak charger as well as the full range R3008SB receiver which has 8 conventional outputs, or a full 10 through the S-Bus or S-Bus 2 outputs, the 10J also including an S-Bus servo programming function. With no less than 30 model memories, the 10J also features a model memory transfer function, where a model memory can be wirelessly transferred to or from another 10J transmitter, or from an 8J, a real boon for those with multiple models/transmitters. As the 10J also includes S-FHSS transmission, all of the current FHSS air receivers can be used, ranging from the micro 6 channel R2106GF through to the 8 channel R2008SB. The 10J has extremely powerful mixing functionality, with 16 aircraft, 17 helicopter and 13 glider mixes being built-in, but on top of this there are six freely programmable mixers.

Note: This video was made by the manufacturer of the product and therefore we are not responsible for its contents.

• Futaba T-FHSS, S-FHSS 2.4GHz security
• Airplane, heli, glider and multi-rotor software
• 30-model memory
• S.Bus capable T-FHSS receiver
• Telemetry
• Synthesized voice for telemetry data
• Vibration alerts for alarm conditions and low battery
• User-updatable software (requires optional CIU-2 interface)
• Wireless data transfer among 10J transmitters
• Built-in S.Bus programming link for S.Bus servos
• 10-character model and user naming
• Large (128 x 64 dot) backlit LCD display
• 10 channels (one variable knob, five 2-position switches, two 3-position switches, one momentary switch, two digital levers)

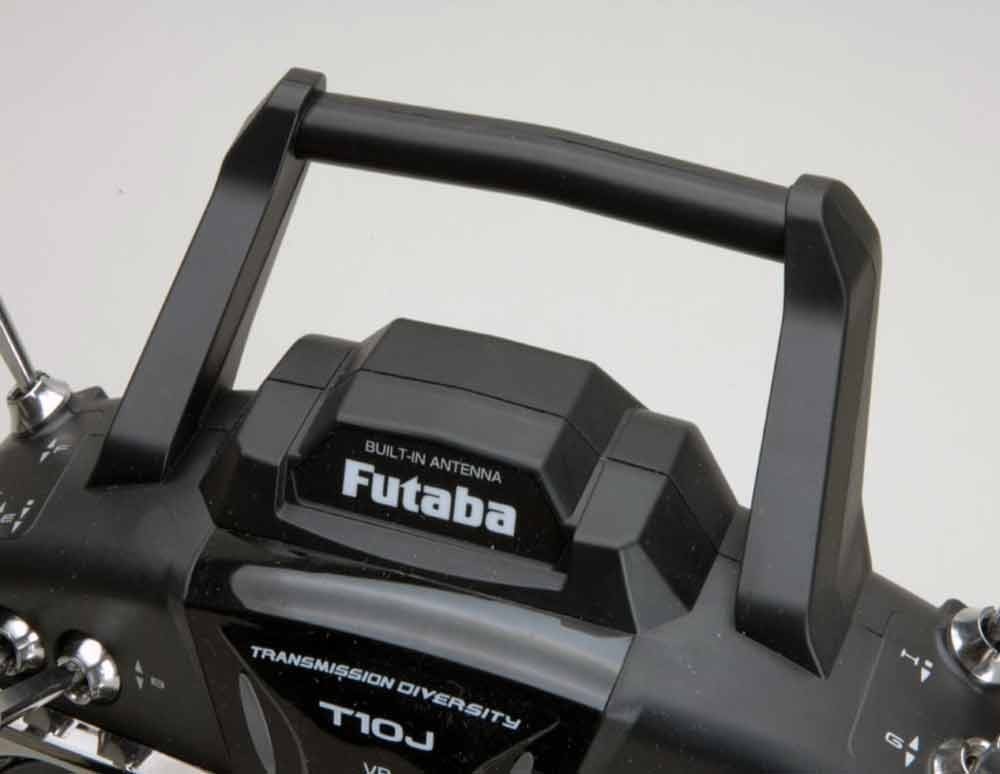

• Built-in diversity antenna
• Jog dial and 3 buttons for fast, easy programming
• Sub-trim and fail-safe (all channels)
• Servo reversing, endpoint adjustment, digital trims, dual rates/exponential* & ATL
• Trim step adjustability
• Trainer system
• Throttle cut
• 2 count-up/-down timers + integrated timer
• Model timer
• Range check mode
• Servo cycle w/bar graph displays
• Assignable switch/lever/functions (Ch. 5-10)

• Heli Features:

• 6 programmable mixes
• 10 factory-defined mixes
• 8 swash plate types
• 5 flight conditions w/delay
• Throttle curve (4 curves, 5 points)
• Pitch curve (5 curves, 5 points)
• Throttle hold & delay
• Swash AFR
• Electronic swash ring

• Airplane Features:

• 6 programmable mixes
• 9 factory-defined mixes
• Flaperons with differential rate
• Flap trim
• Differential ailerons
• Gyro sensitivity
• 5-point throttle & pitch curves
• Throttle delay
• Idle down

• Glider Menu:

• 6 programmable mixes
• 3 factory-defined mixes
• 5 wing types
• Gyro sensitivity
• Motor menu
• 2 flight conditions

• Multirotor Menu:

• 6 programmable mixes
• Gyro sensitivity/mixing
• Center stick alarm

Technical Specifications:

Type: 2-stick, Mode 2

System: T-FHSS Air, S-FHSS, switchable

Channel: 10

• Transmitter
• Receiver
• Transmitter battery
• Transmitter battery charger
• Switch
• Instructions manual
