Hobbywing XR10 Pro G2 Sensored Brushless ESC (Black)


Tax included
Last ones in stock

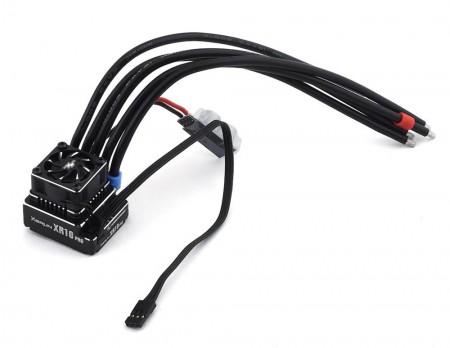

This is the Hobbywing XR10 Pro G2 2S Sensored Brushless ESC.

  • Upgraded 32-bit M4 microprocessor
  • Peak current up to 1200A
  • Built-in switch mode BEC with adjustable voltage from 5V to 7.4V
  • New WIFI express module (purchase separately) is available to configure and update the ESC
  • Switchable motor direction (CCW/CW) for various chassis
  • Multiple protections come in standard
  • Low-voltage cutoff protection
  • ESC and motor thermal protection
  • Fail safe (throttle signal loss protection)
  • Reverse polarity protection
  • Firmware upgrade via Hobbywing multi-function LCD program box or WiFi Express (item sold separately)

Technical Specifications:

Controls: Forward/Brake/Reverse

Input Voltage: 2S LiPo / 5-6S NiMH-NiCD

BEC: 5V-7.4V @ 4amp

Motor Limit Brushless Mode: No limit

Max Current: 160A

Burst Current: 1200A

Brushless Type: Sensor/Sensorless

Dimensions: 37.5x30.9x31.6mm

Weight: 95g

Programmable: Yes

Application: Brushless motor system for 1/10th, 1/12th Touring Cars & Buggies Racing

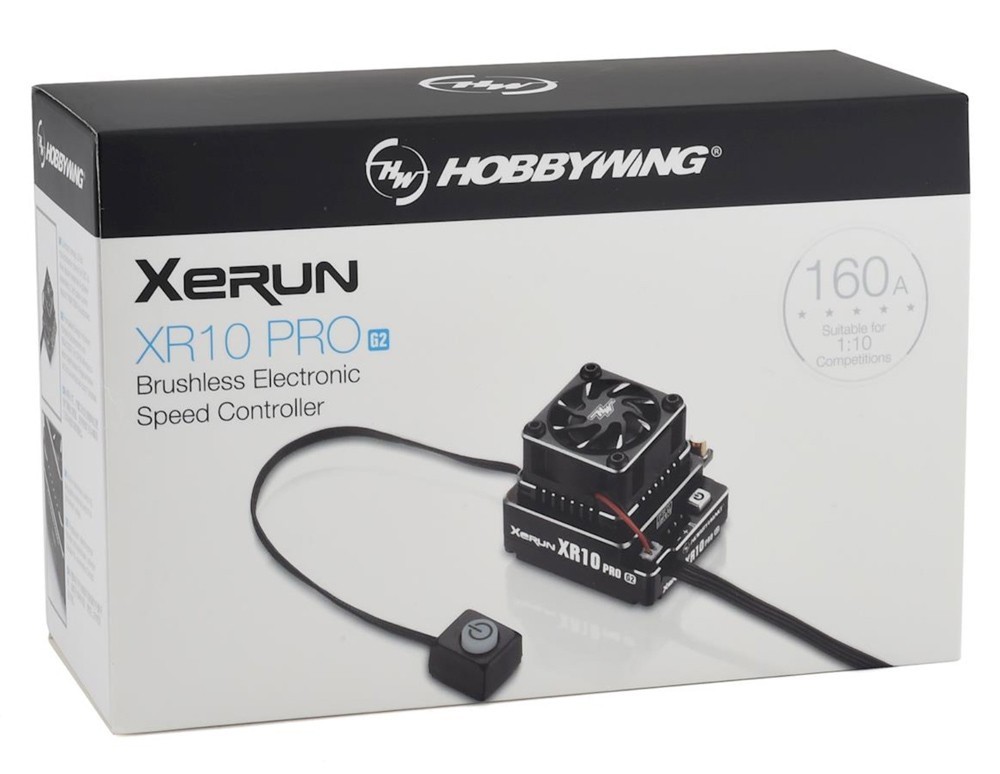

  • XR10 PRO G2 ESC w/cooling fan

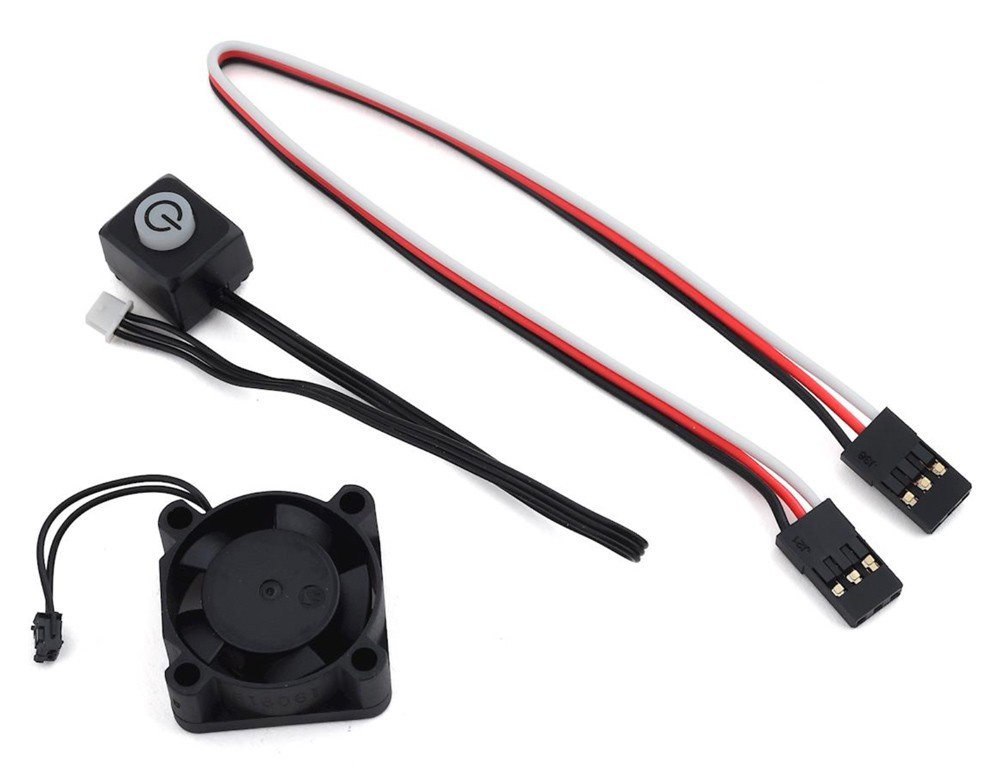

  • Extra cooling fan
  • External Switch

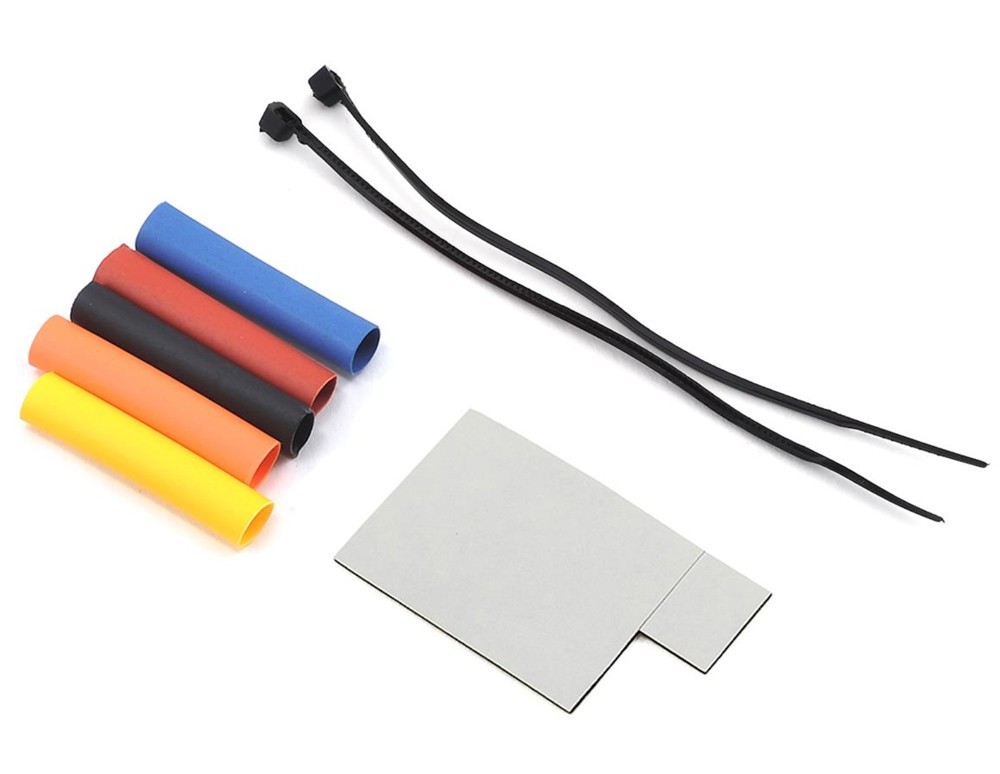

  • Decals, double sided tape, zip ties
  • Manual
Motor Size
540 Size
Motor Type
1/10 Scale
